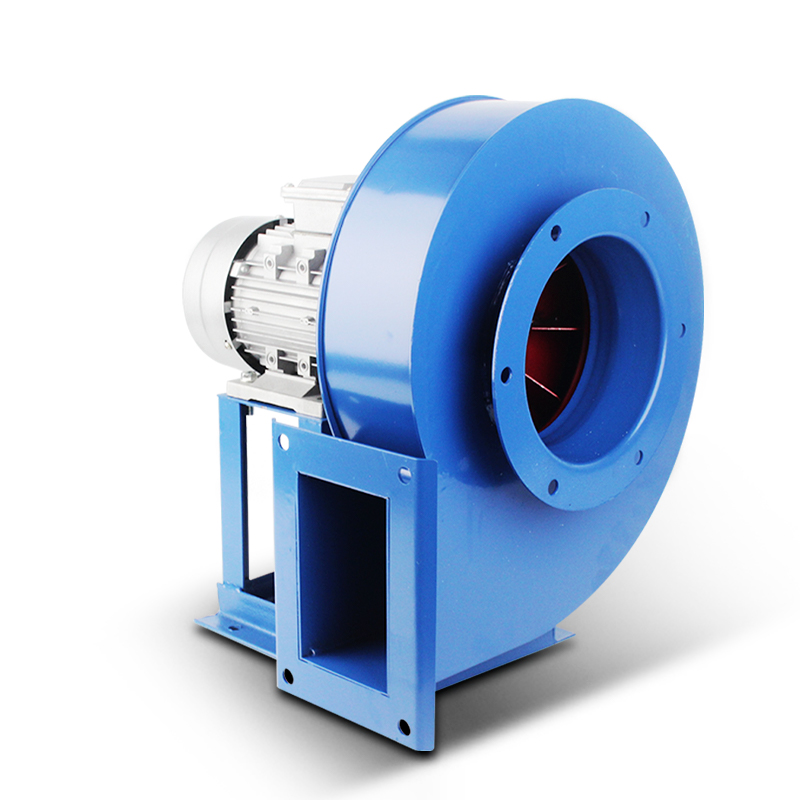

y5-47鍋爐引風機
耐高溫? 風力強勁? 風冷降溫
The traditional color still make people happy, and simple tonal collocation, bold stripes can transform bring new look, let you bec
大口徑風口
高硬度? 高風壓? 廣角吸風
High hardness, high wind pressure, wide angle suction

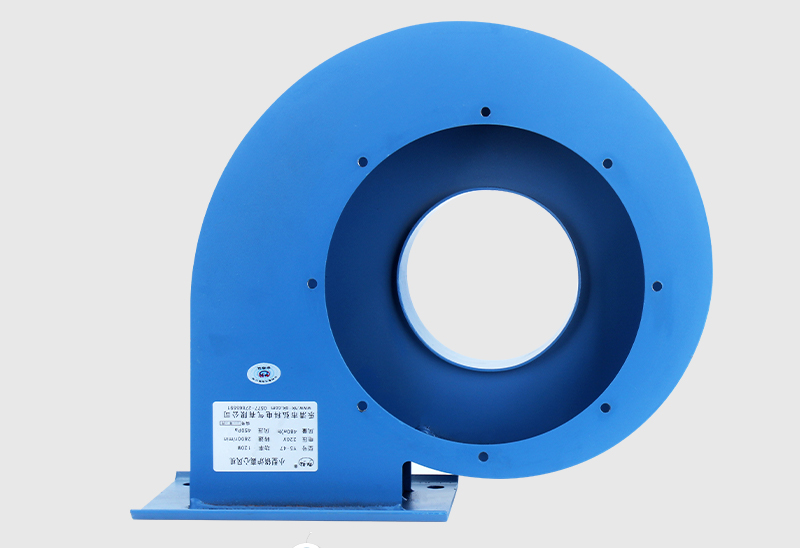

碳鋼外殼
先進切割，精準成型? ?外形美觀? ?耐磨損抗震 壽命更長
Advanced cutting, precise shaping, beautiful appearance, wear resistance, shock resistance, longer life

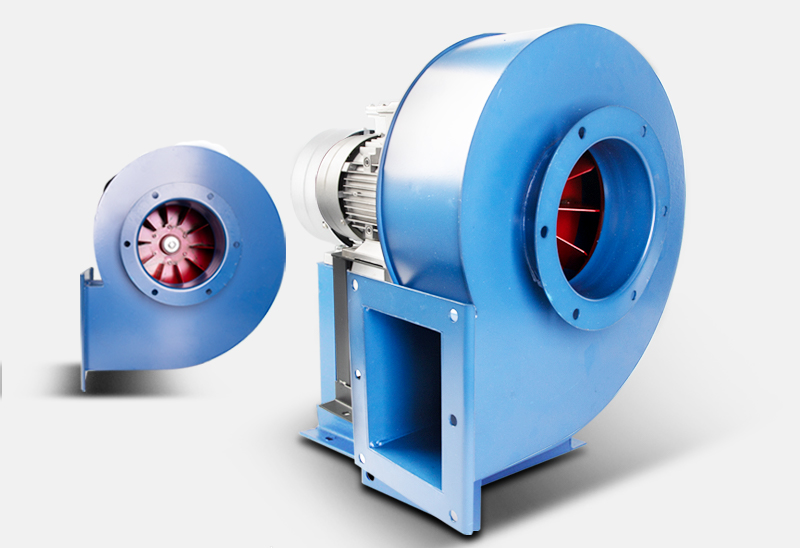

直翼式葉輪
直翼式葉輪，結構穩固? 風力更強勁
Suitable for printing machine, agricultural cultivation, plastic machinery,

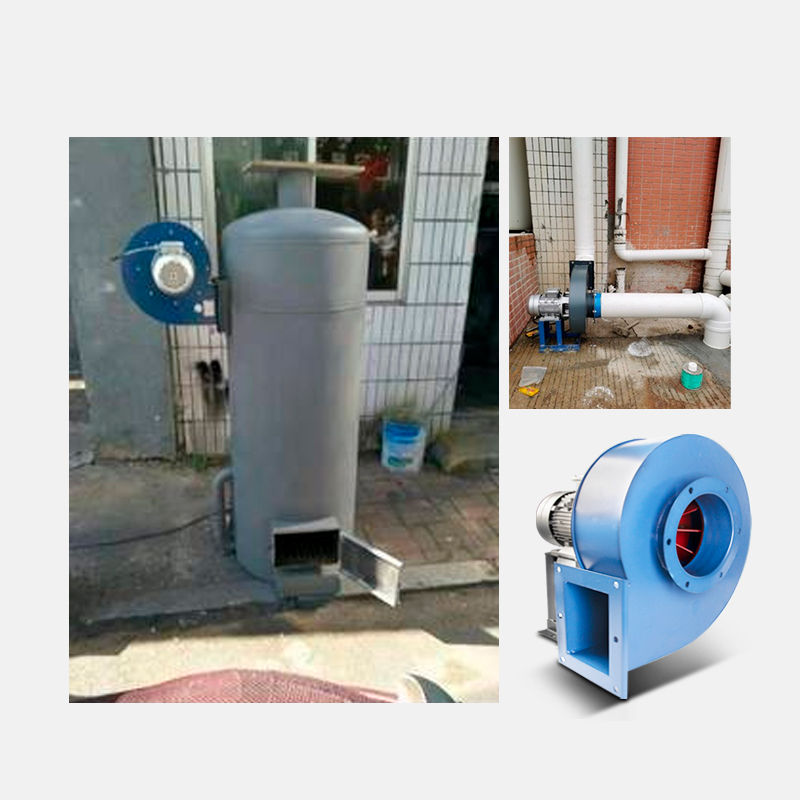

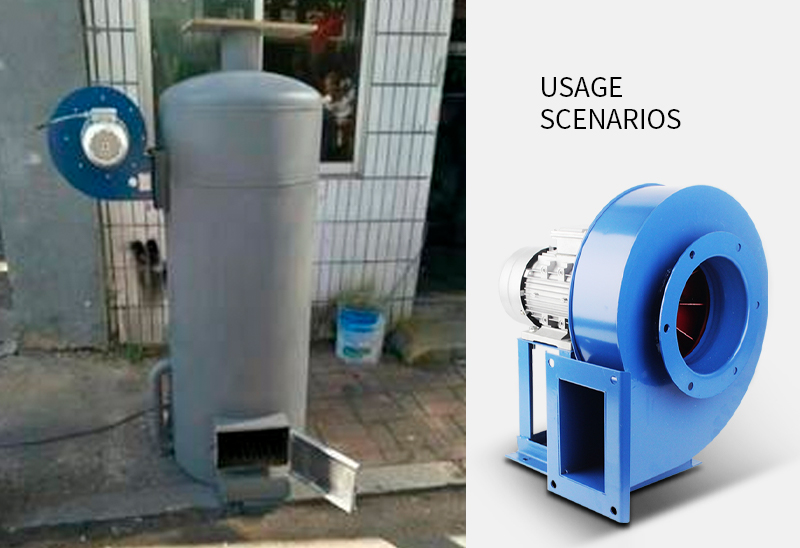

使用場景

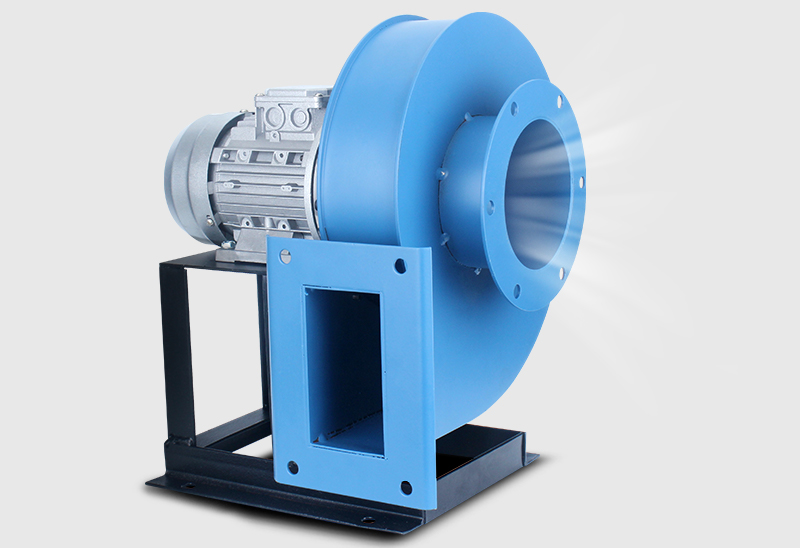

Y5-47鍋爐引風機造型美觀，安裝便利
Y5-47 boiler induced draft fan is beautiful in appearance and easy to install
Y5-47風冷耐高溫小型鍋爐引風機，是根據鍋爐行業使用要求專門研發的。該系列風機采用鋁合金壓鑄電機外殼，風機外殼經磷化處理后噴塑或電泳
處理，轉子及風葉雙面雙面動平衡校正，耐高溫優質軸承，可拆卸底腳，安裝靈活多變。具有噪音低、效率高、重量輕、造型美觀、散熱快、耐高溫、
振動小、壽命長等優點。

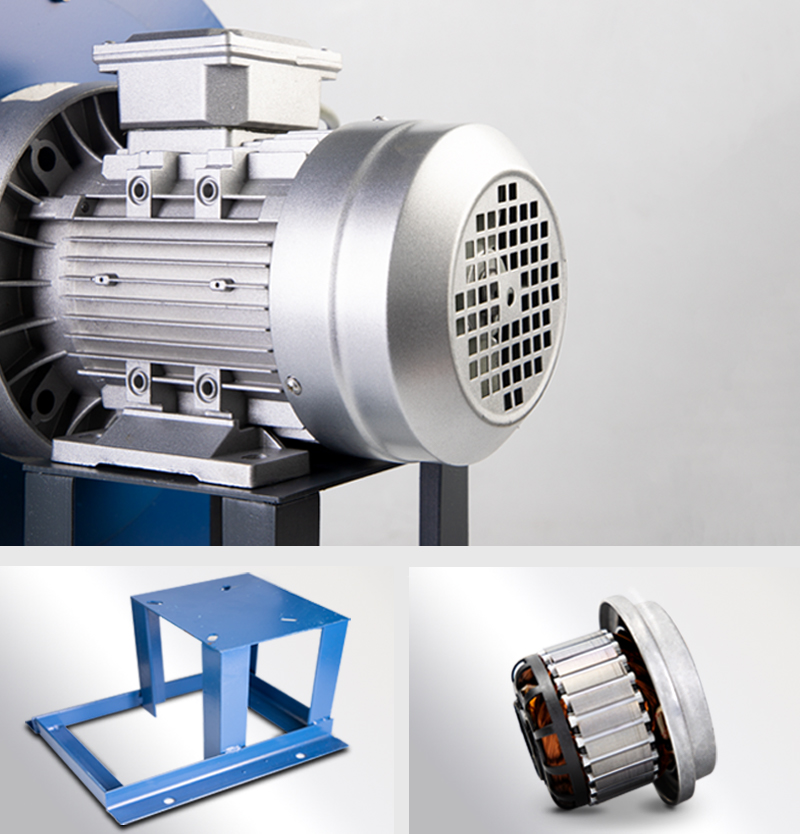

產品細節

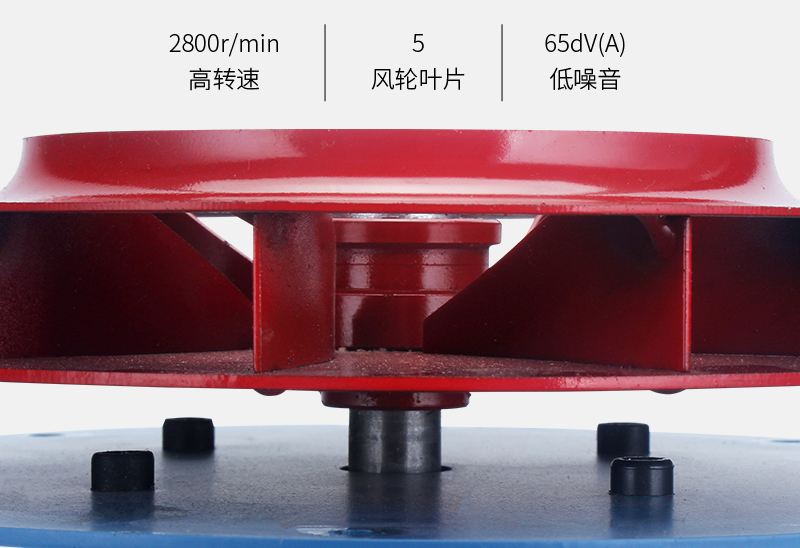

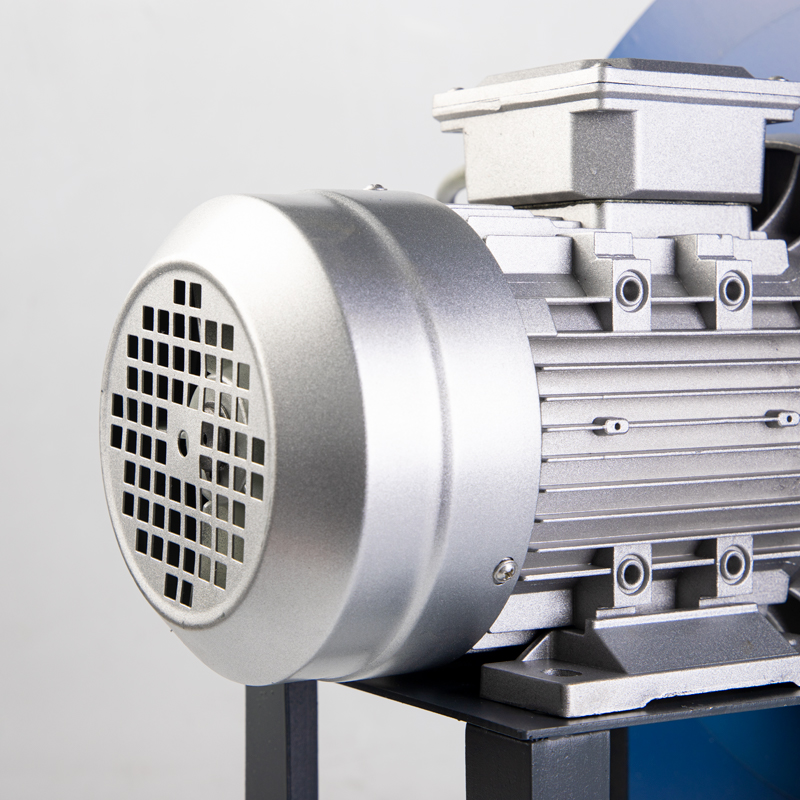

純銅高轉速電機? 轉速高達2800次/分
Pure copper high-speed motor, speed up to 2800 times/min

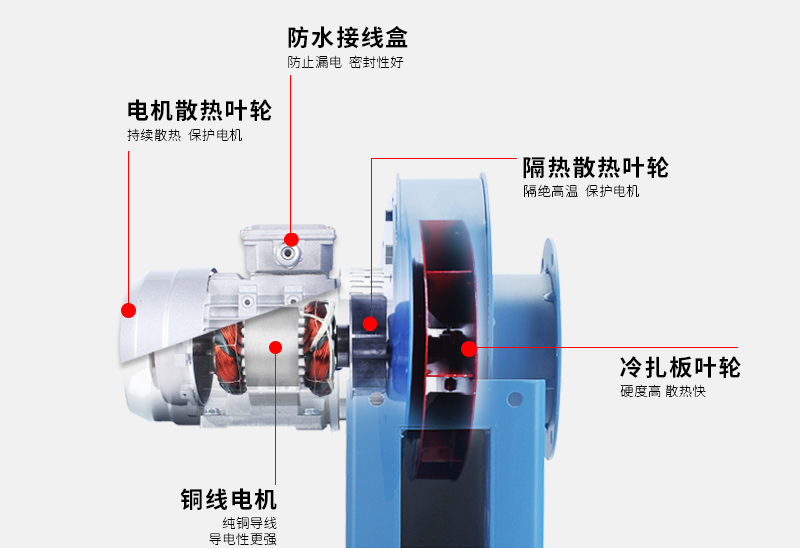

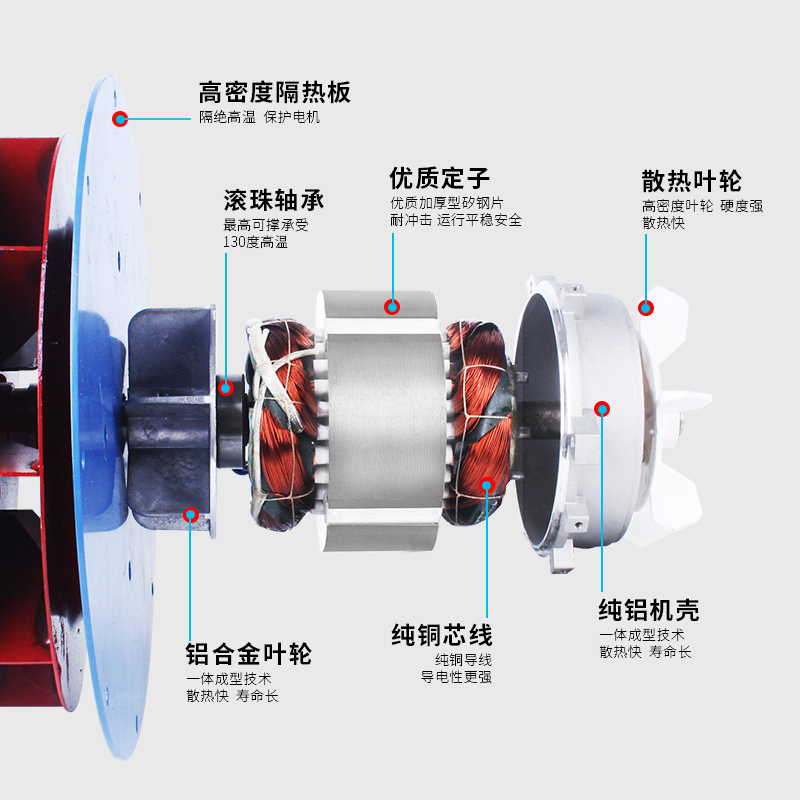

內部解析
鋁合金風扇 隔斷葉輪與電機之間的熱量，散熱效果好
The aluminum alloy fan cuts off the heat between the impeller and the motor, and the heat dissipation effect is good

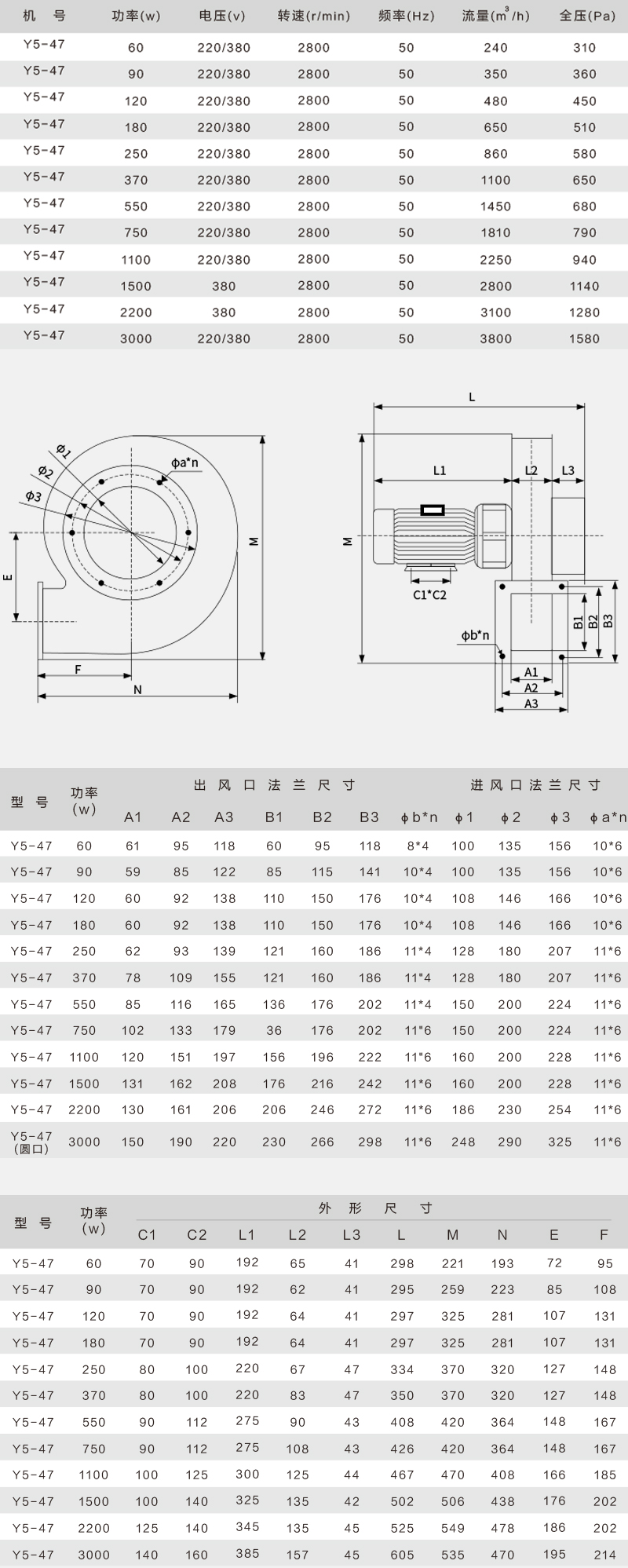

技術安裝參數
Y5-47鍋爐引風機 安裝簡單
Y5-47 boiler induced draft fan is easy to install

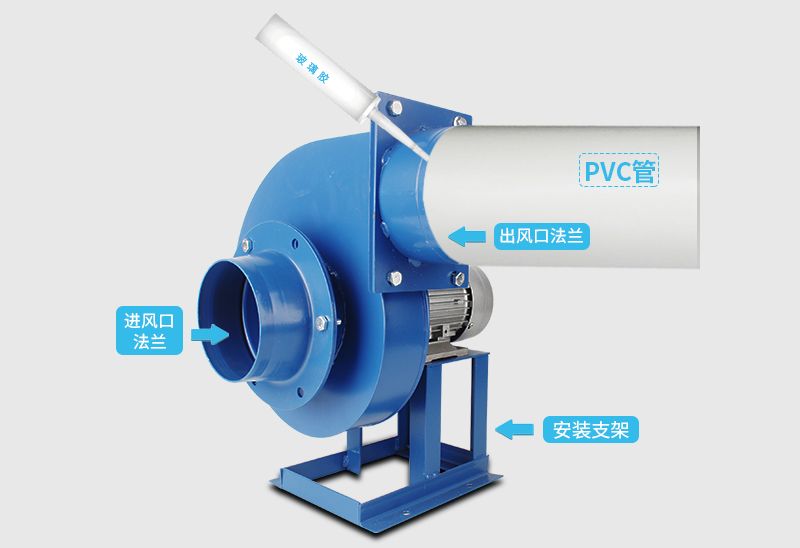

安裝方法
Y5-47鍋爐引風機安裝簡單，贈送自攻螺絲
Y5-47 boiler induced draft fan is easy to install and self-tapping screws are provided
1.自攻螺絲(贈送)? ? ? ?2.接駁PVC管(自備)? ? ? ?3.玻璃膠固定(自備)
接線示意圖
電機必須充分接地,接線請嚴格按照下圖操作
The motor must be fully grounded, and the wiring must be strictly in accordance with the following diagram
